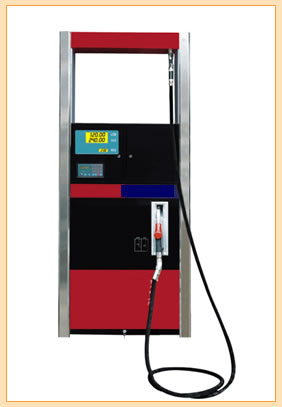

Fuel Dispenser
1 Hoses 1 Pump
External Dimension:920×455×2150mm

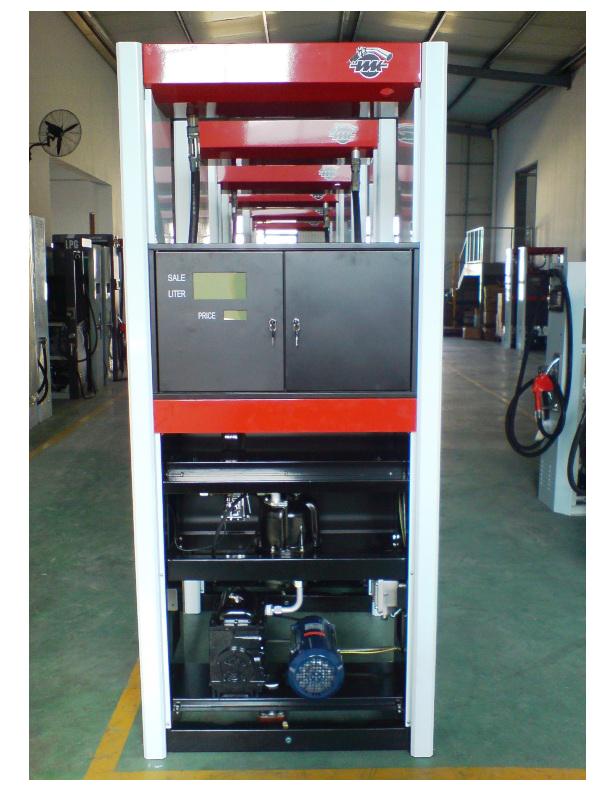

Components Installed(standard):
1.****** Electronic Unit
2.Tokheim Flowmeter
3.Tokheim Gear Pump
4.TD-20A SelfShut-Off Nozzle
5.380V Ex-Motor

Technical Specifications:
1.Accuracy: ±0.3%
2.Frequency: 50HZ±1HZ
3.Delivery Rate: 5-50L/min
4.Rating Power: 0.75KW
5.Measurbale Minimum: 5L
6.Ambient Humidity: 30%-90%
7.Noise: ≤80dB(A)
8.Ambient Temperature: -40℃-+60℃
9.Inlet Vacuum: ≥0.06MPa
10.Anti-Explosive ID: Exdm[ib]ib Ⅱ AT3
11.Register Range: 0.00-9800.00L or Yuan
12.Anti-Explosive Certificate Number:CE011154 CE011155 CE011156 CE011157
13.Totalizer Range:0.00-99999999999.99L or Yuan
14.Range of Price: 0.01-99.99Yuan/L
15.License of Manufacturing Metric Instrument:ZheZi00000625
16.Preset Min Value: 0.00-0.99L
17.Power Supply: AC380V±20% or AC220V±20%
